How to Paint Your Boat's Bilge
A clean, freshly painted bilge is easier to keep clean and free of odors. The right bilge paint for boats acts as a barrier that keeps water, oil, and other chemicals out, protecting fiberglass from wicking and osmotic damage and wood from rot. A clean, attractive finish also makes it easier to spot small problems, like a minor fuel or antifreeze leak, before they turn into costly repairs.
An epoxy bilge paint is the standard choice for this job. It cures into a hard, chemical-resistant film that stands up to the fuel, oil, and moisture a bilge sees over time, which is exactly what you want from a bilge coat paint in a space that's rarely easy to get back into once it's closed up.
Stay Safe First
Bilges are confined spaces with little or no air movement, so good ventilation and the right personal protective equipment (PPE) are critical, especially while sanding and painting. The chemicals in bilge paints, primers, and solvents are hazardous to your health, and the PPE you need will vary based on the job and the products involved.
- Read the safety information on all product labels before you begin.
- Review each product's Safety Data Sheet (SDS)
- Gather the PPE each manufacturer recommends. That typically includes a proper respirator for application and for sanding cured material, gloves suited to the job, and eye, face, skin, and clothing protection.
Tools and Materials
- Chip brushes
- Foam roller kit
- Tyvek paint suit with hood
- Sandpaper sheets, 220 grit
- General-purpose scuffing pad
- Nitrile gloves
- Half-mask respirator rated for paint and sanding dust
- Protective eyewear
- Xylene
- Epoxy bilge paint
- Brushing thinner
- Topside primer
- Epoxy barrier coat primer
- Dewaxer/surface prep solvent
- Clean rags
Complete Guide on How to Paint Your Boat's Bilge
Step 1: Prep and Prime the Surface
How you prep for bilge paint depends on what's already down there.
Fiberglass: Wipe the surface clean with a lint-free rag wetted with dewaxer/surface prep solvent. Abrade with 220-grit sandpaper, remove the sanding residue, then wipe clean with brushing thinner. If you're priming with an epoxy barrier coat instead, solvent-wipe with dewaxer/surface prep solvent rather than thinner.

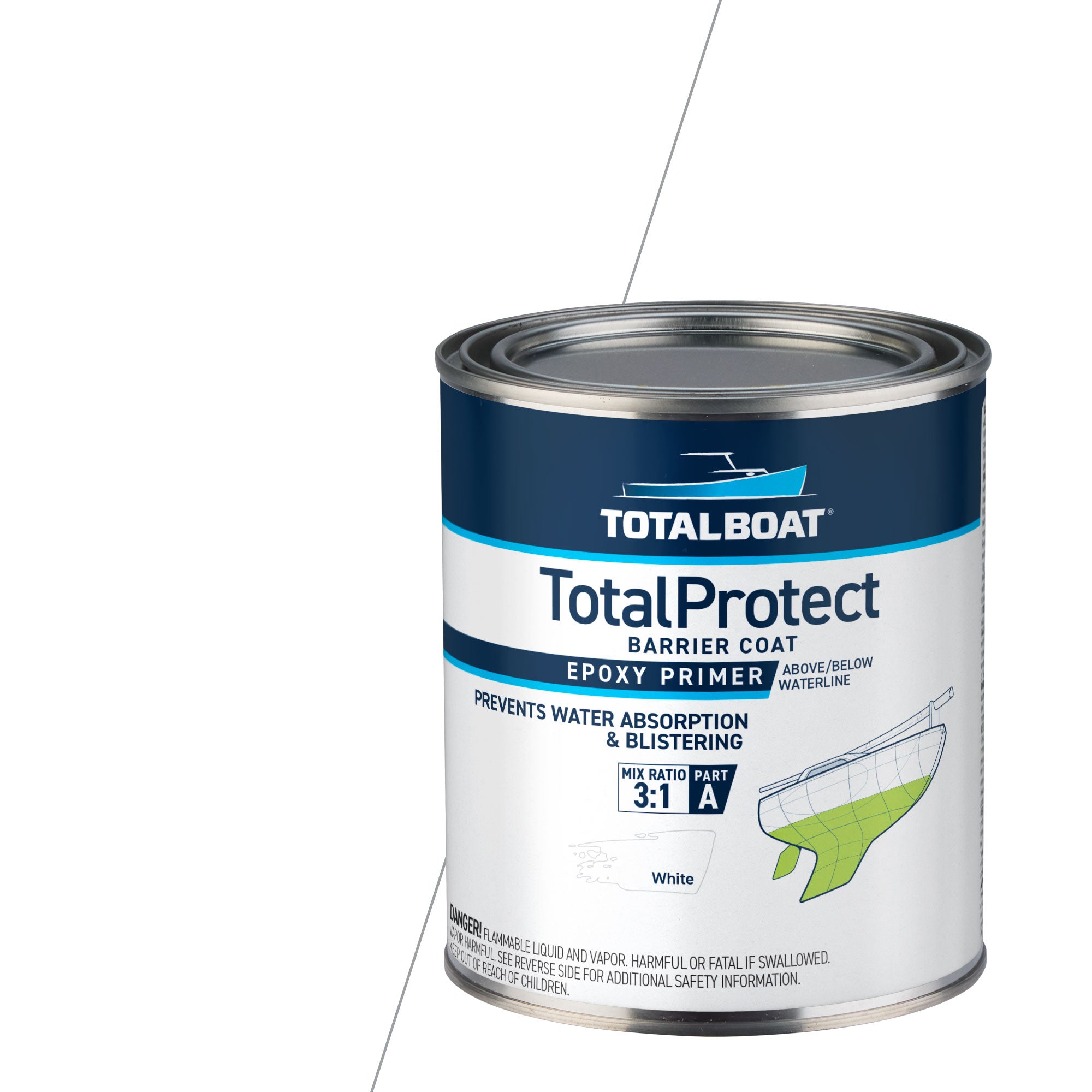

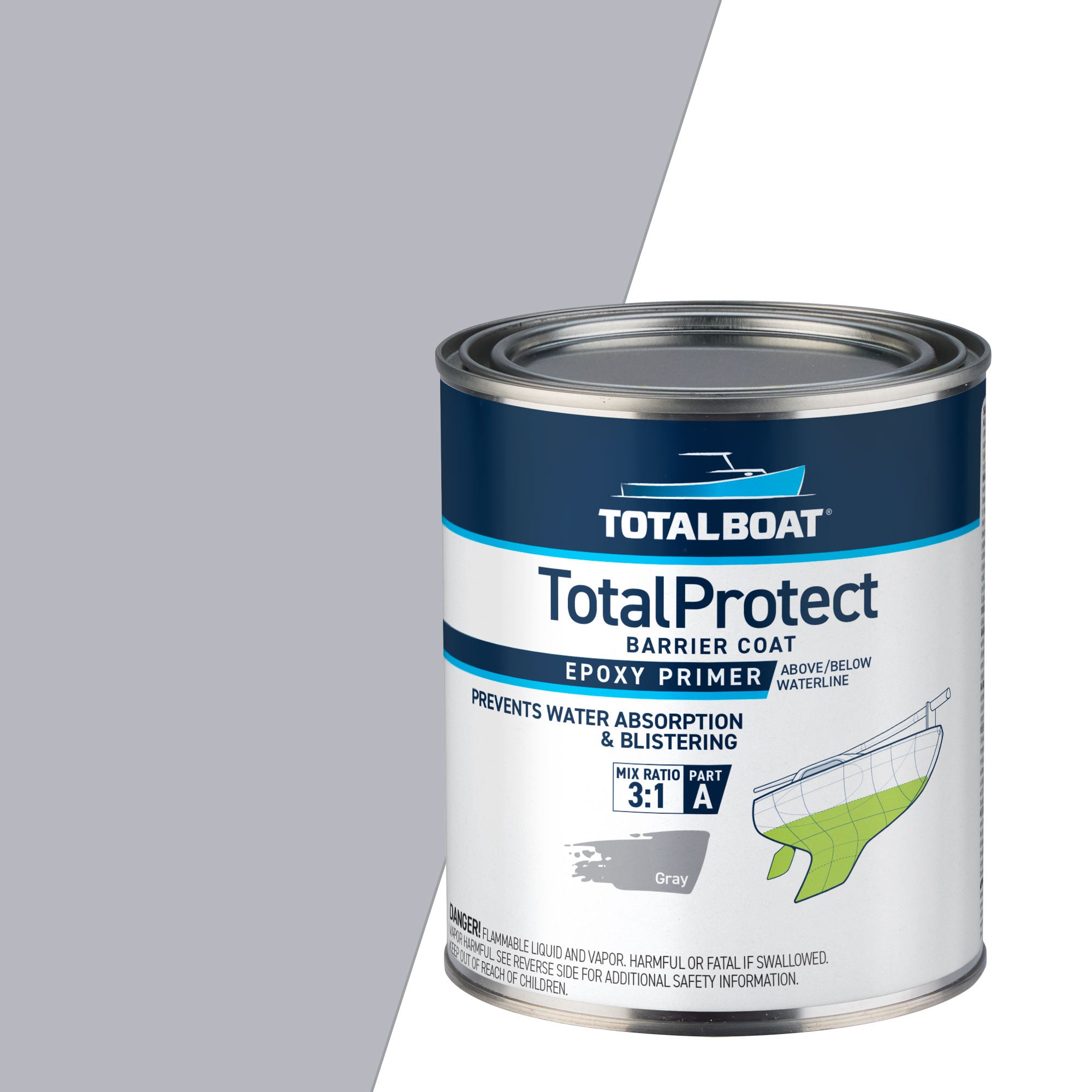

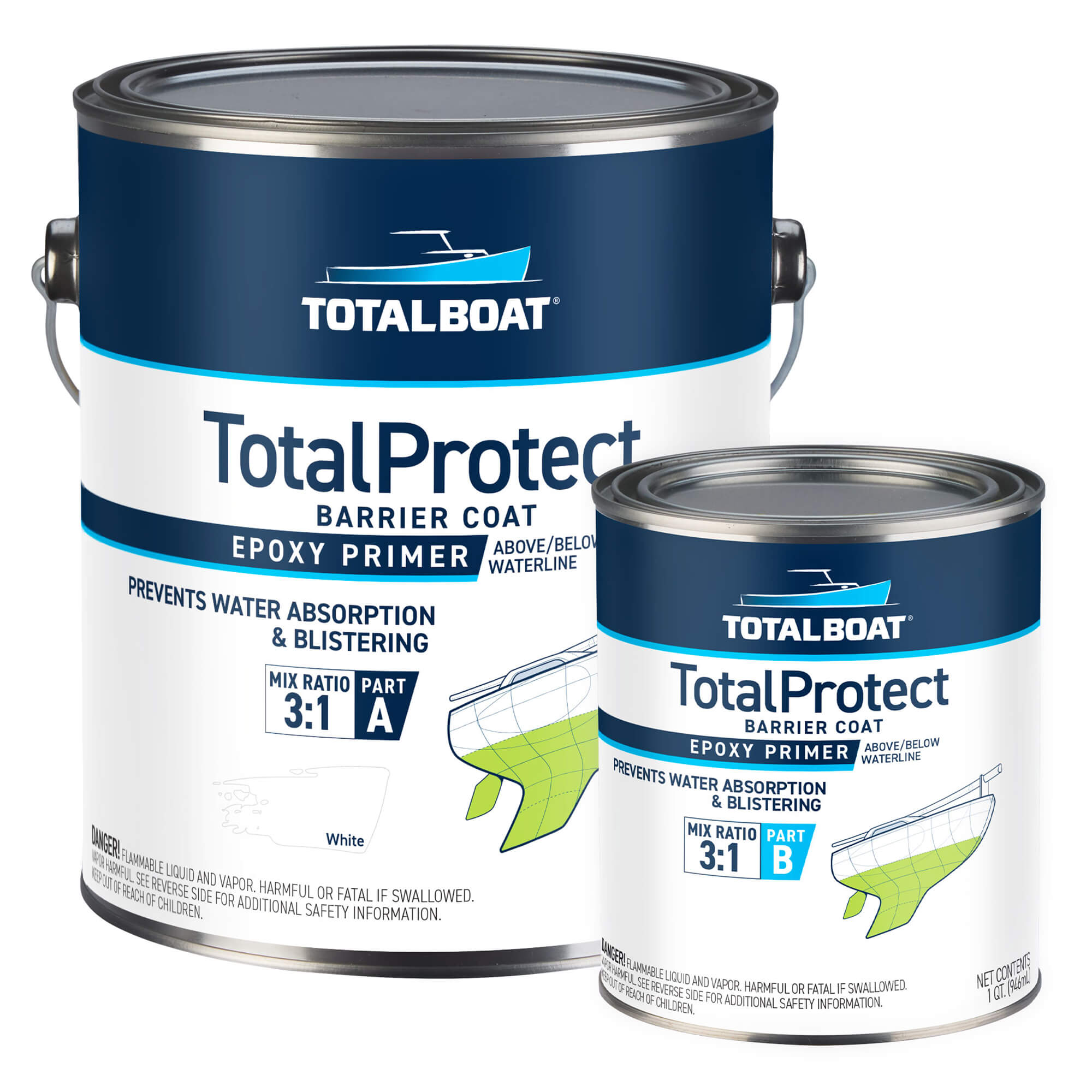

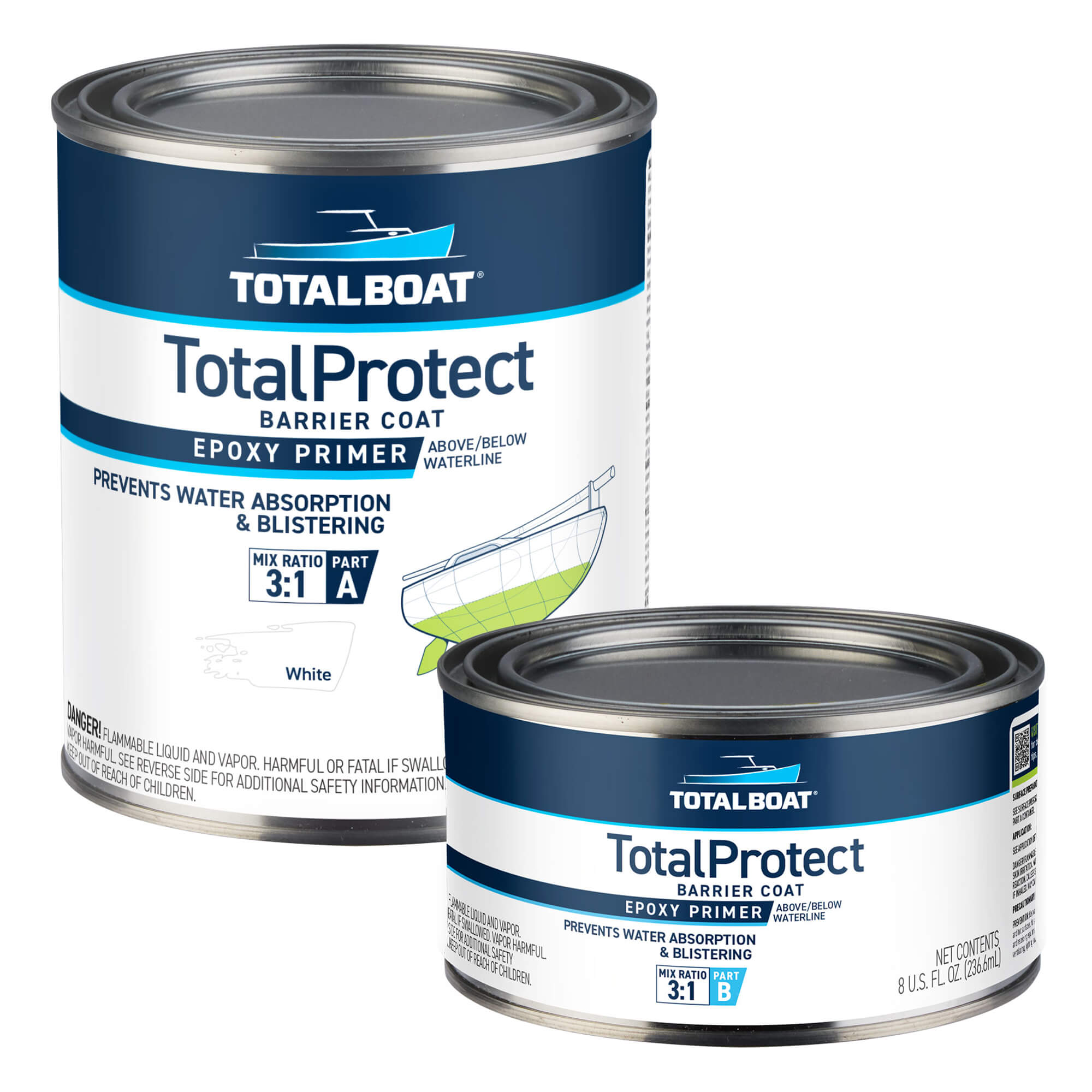

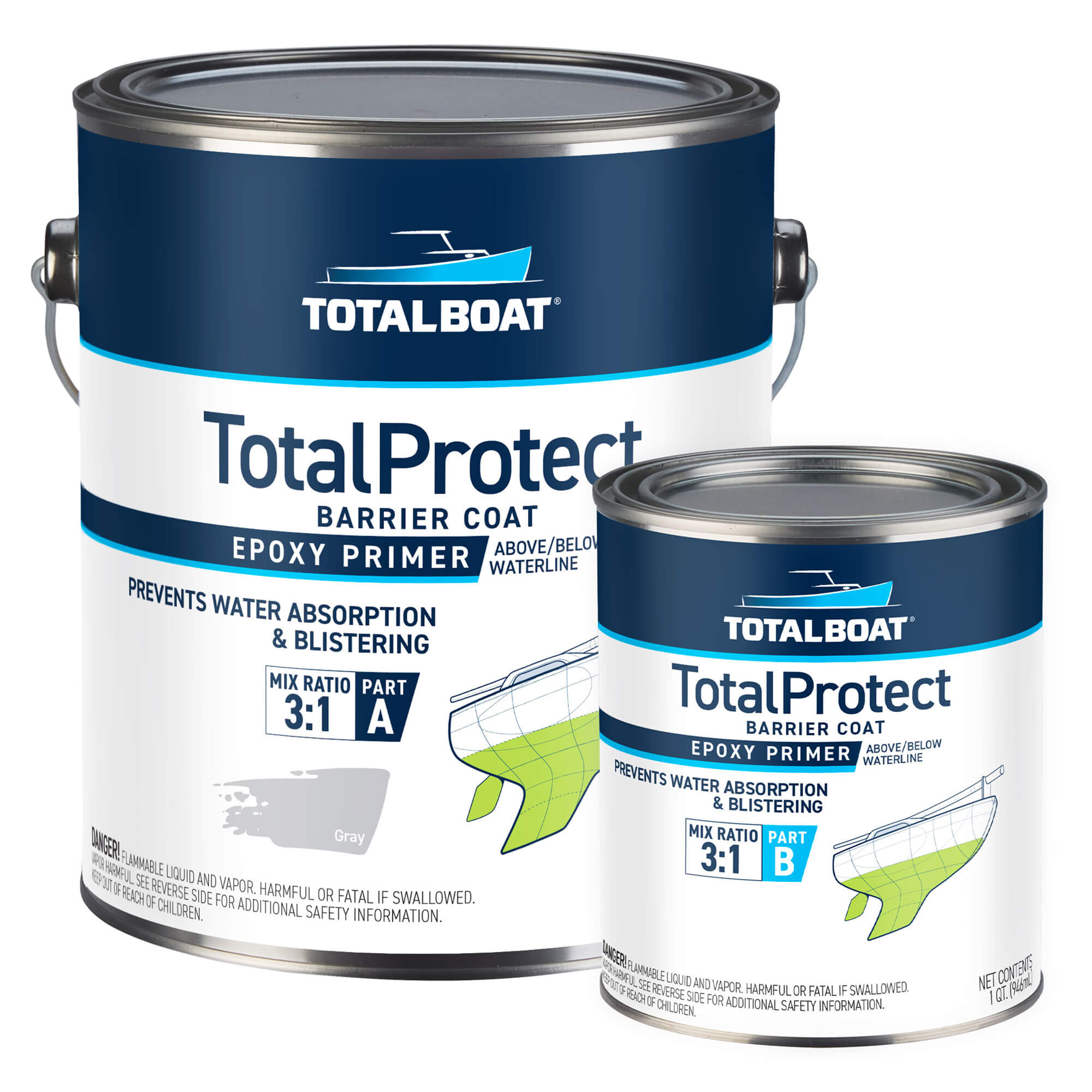

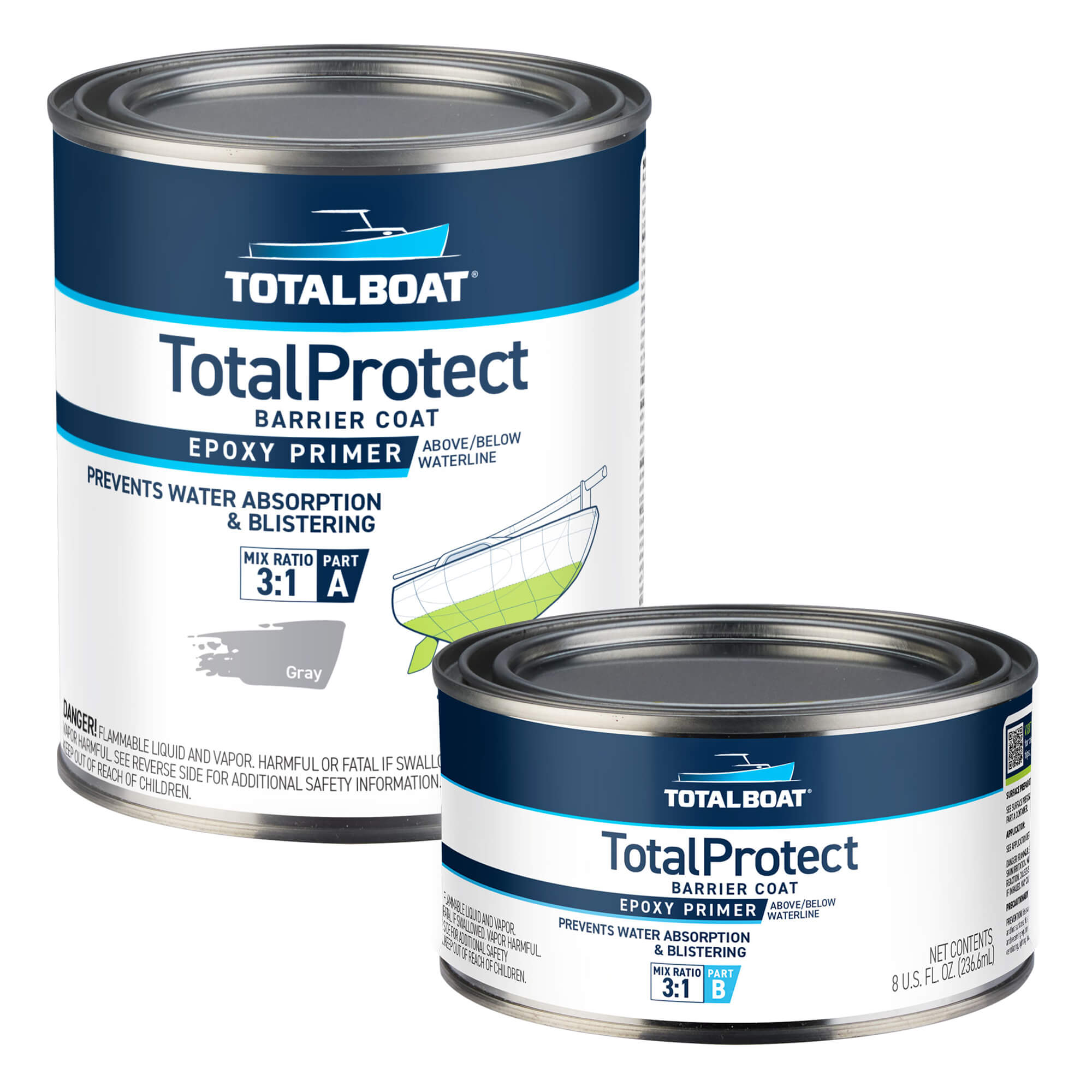

Priming fiberglass (optional): For a more robust undercoat, prime with an epoxy barrier coat primer as directed. Let it dry, sand with 220-grit sandpaper, wipe clean with brushing thinner, and allow it to dry completely.
Wood: Wipe the wood clean with brushing thinner to remove surface contaminants. Sand with 220-grit sandpaper, then wipe clean with brushing thinner again.

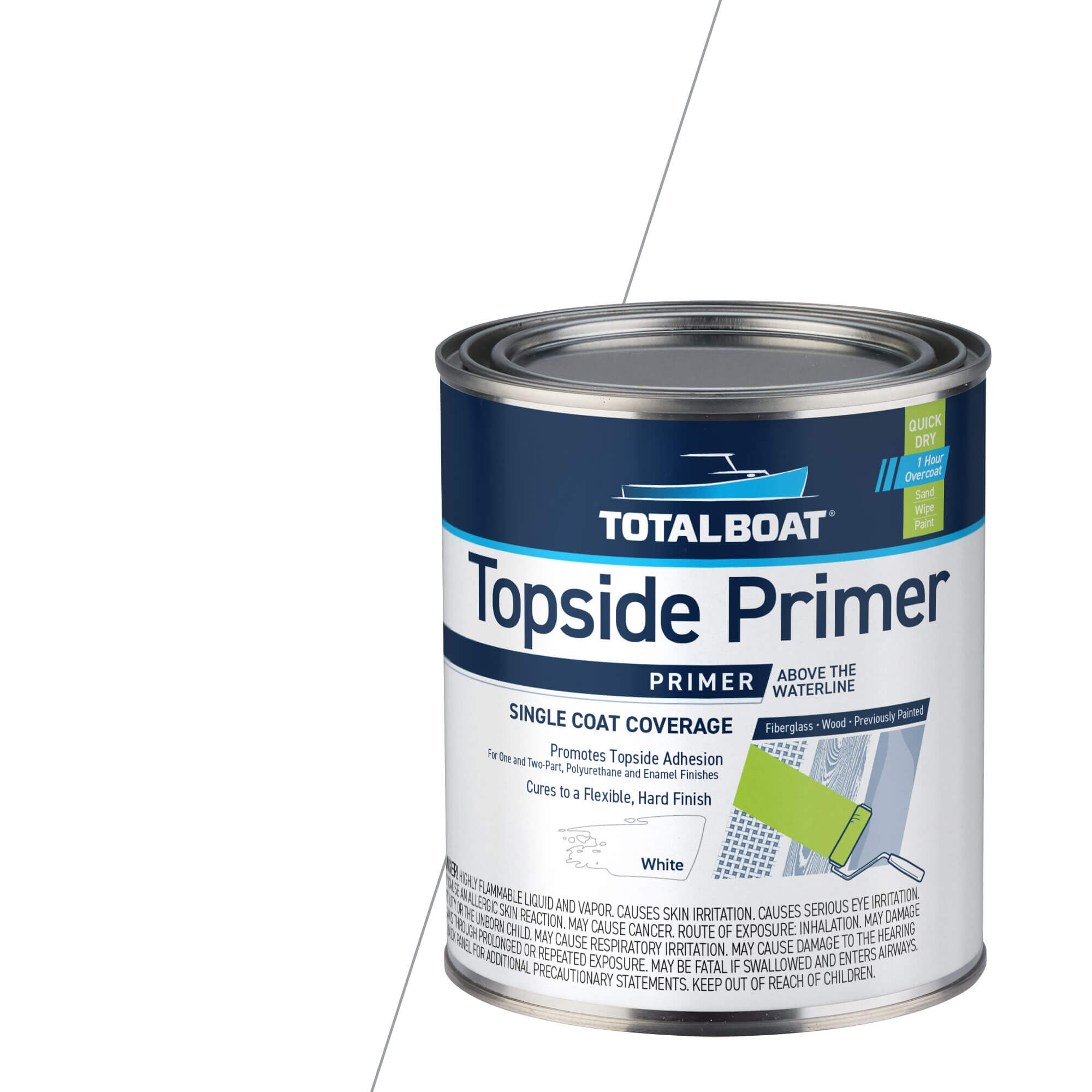

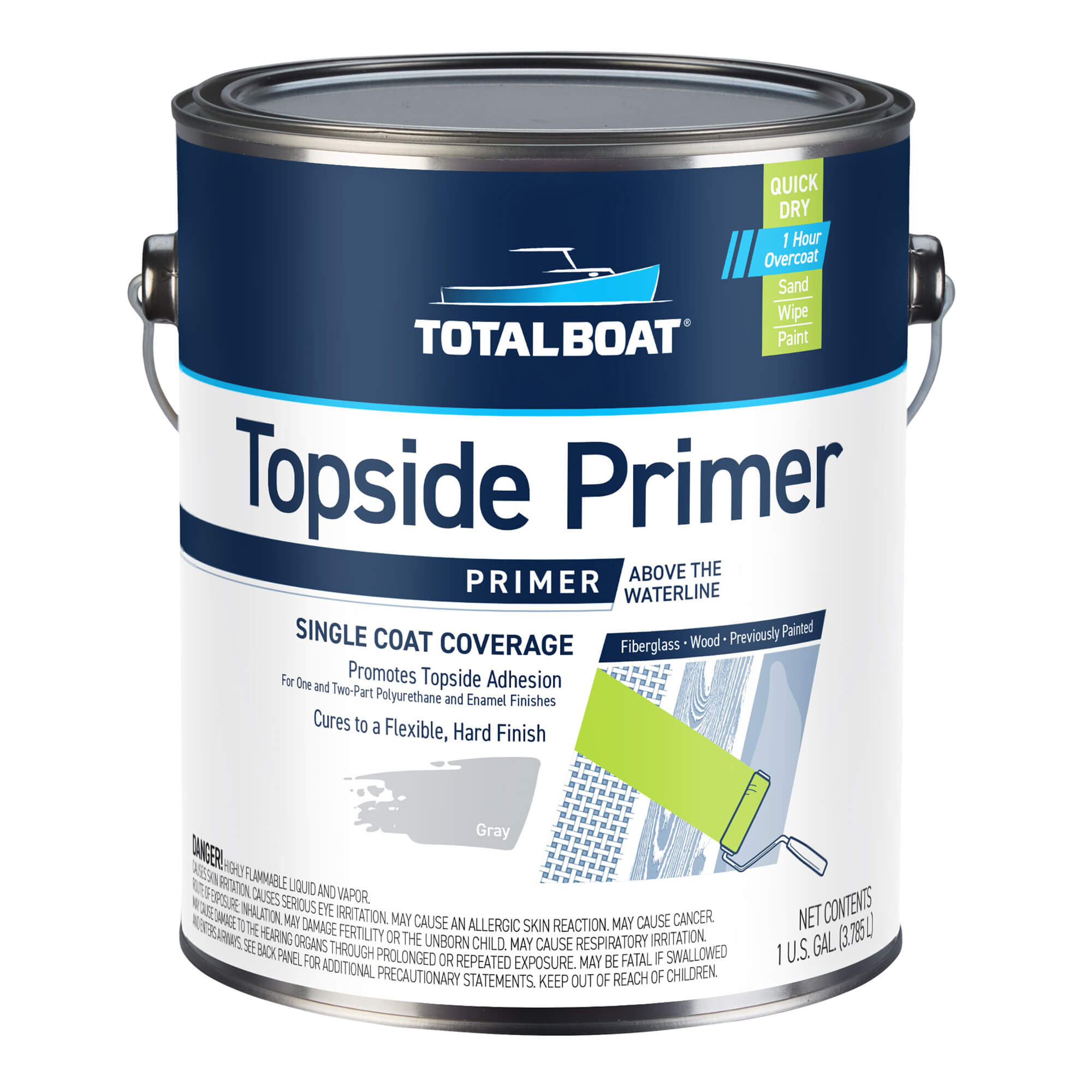

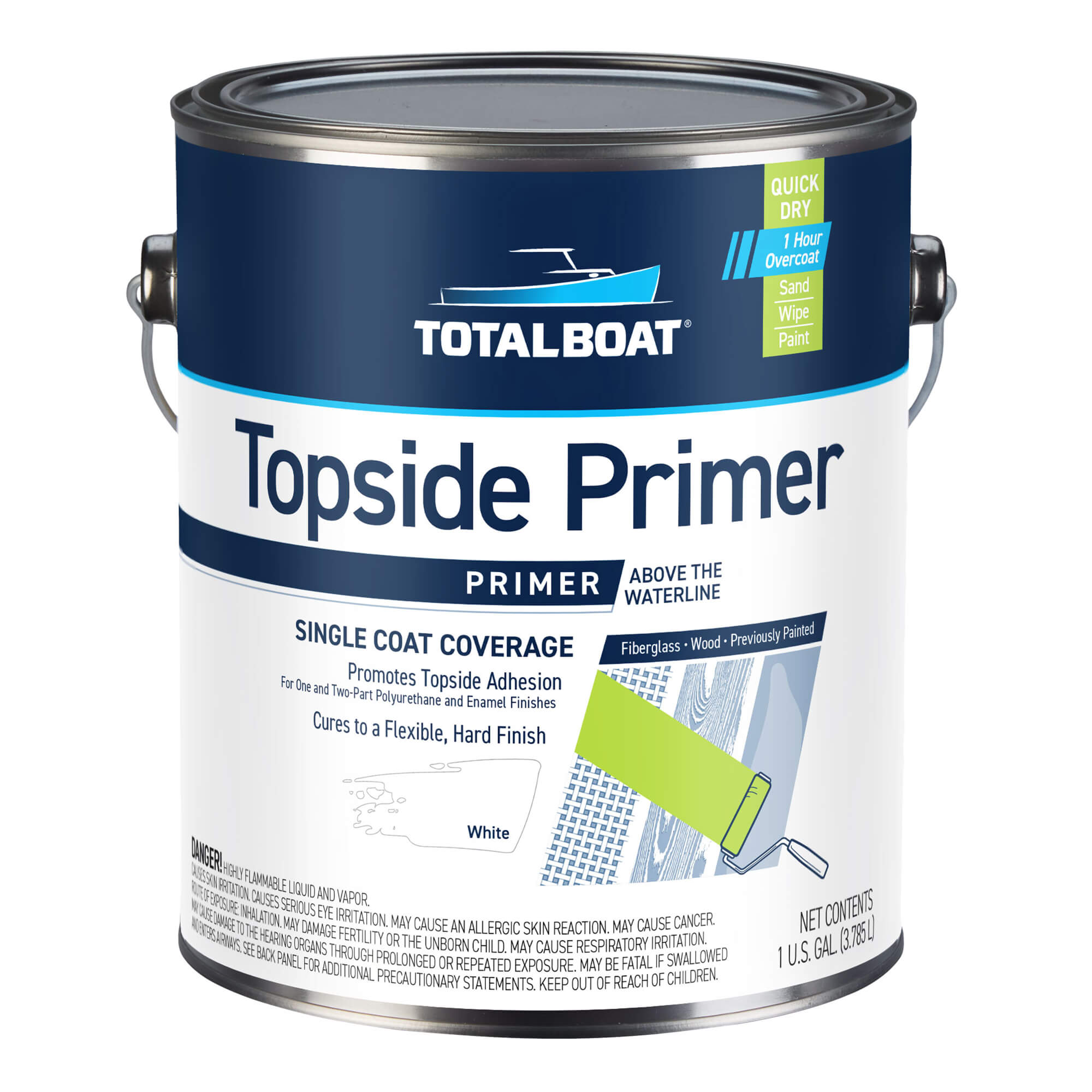

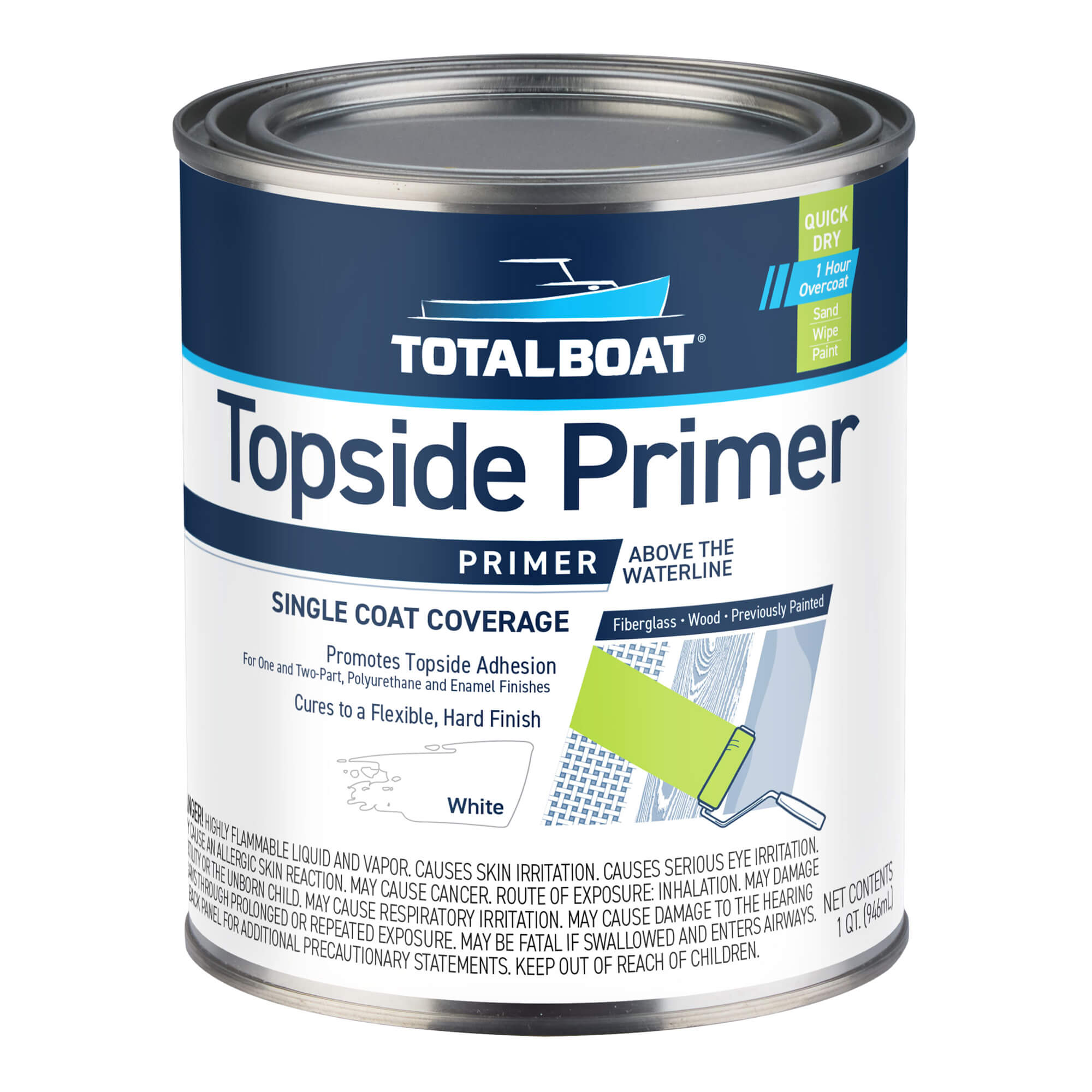

Priming wood (optional): Prime with a topside primer as directed and let it dry. Sand lightly with 220-grit sandpaper, wipe clean with brushing thinner, and let dry.
Previously painted surfaces, good condition: Wipe with brushing thinner, then prime with a topside primer and let dry.
Previously painted surfaces, poor condition: Remove all existing coatings, including old paint and primer, then follow the prep steps above for a surface in good condition.
Metals: Priming is mandatory here. Prime with an epoxy barrier coat primer as directed. Once cured, sand with 220-grit sandpaper and remove the sanding residue.
Step 2: Mix, Thin, and Apply
Epoxy bilge paint separates between uses, so give it a thorough stir before you start — make sure the high-solids material that settles on the bottom is fully mixed back in.
Bilge paint is naturally thicker than most topside paints and may need thinning depending on conditions.
Brushing or rolling: bilge paint shouldn't need thinning on fiberglass or primed surfaces. Add brushing thinner (5-10%) to improve flow or extend working time in warmer conditions. Thin the first coat on bare wood by 10%.
Spraying: thin bilge paint 10-20% with xylene.
Apply 1-2 coats by brush, roller, or spray, and pay close attention to recoat times and temperatures.
Check the weather before you start. Watch paint, air, and substrate temperatures along with relative humidity, and paint only when conditions allow the surface to dry before dew sets in.
Pro Tip: Don't apply the paint too thickly — a heavy coat traps solvents underneath and causes drying problems.
Frequently Asked Questions
Why isn't my bilge paint adhering properly?
This usually comes down to surface prep. If contamination or grease wasn't fully removed before painting, or if the surface wasn't completely dry when you applied the paint, adhesion suffers. Going back over the surface prep steps and starting with a clean, dry substrate solves most adhesion problems.
Why isn't my bilge paint drying properly?
Two things typically cause this: a coat that's too thick, or the wrong application conditions. Aim for about 3 mils wet film thickness per coat (1-2 mils dry). Also confirm you're applying and curing within the recommended range — roughly 50-95°F and 0-90% relative humidity. Outside that window, cure times stretch out or the paint may not cure fully.
